Precision mechanichal seed drills

Print

Precision, ease of use and low
mantenanice.

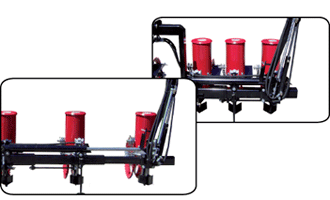

The single grain seed drills are designed for
sewing sunflower, sugar beet,
corn, bean, garbanzo, soy, etc. Their modular design and
strength alow them to adapt to various crops
in different terrain. Great ease of use an
minimun maintenance are the ideal solutions
for precision, hight-performance seeding.

Specifications

  SPECIFICATIONS PARIS-2 PARIS-3 PARIS-4 PARIS-5 PARIS-6 PARIS-7
    Nº rows 2 3 4 5 6 7
    Working Width (cm) 42-100 84-200 126-300 168-400 210-500 252-600
    Transpor width (cm) 92-150 134-250 176-350 218-450 260-550 302-650
    Total Length (cm) 120 120 120 120 120 120
    Total Heigth (cm) 87 87 87 87 87 87
    Hopper capacity (l) 2 x 12 2 x 12 2 x 12 2 x 12 2 x 12 2 x 12
    Weigth (kg) 120 186 240 294 356 410
    Power (HP) 20 30 35 40 50 60

Details


  THREE-POINT LINKAGE
The cat I-II hitch braket can be adjusted in order to adapt to various types of tractor arms.		   REGULATION OF THE ROW SPACING
The position of each body can be adjusted independently in order to adapt to different row spacing.


  CENTRAL ROCKING AXLE
The toothed drive wheels adapt to the terrain thanks to the pivot point between the seed plough and the wheel. Contact with the ground is thus assured, even on uneven ground, and it guarantees continuous traction and the distribution elements.		   CHAIN DRIVE
The drive wheels use chains to transmit movement to the doser disc. A combination of different gears regulates diffetent doses.


  SHOCK ABSORBING SPRINGS
Each body is equipped with a separate shock absorbing spring in order to thus safely overcome the irregularities and foreing bodies in the ground.		   OPENING KNIFES
The opening knifes cause minimun movement of the soil and provide a narrow furrow opening where the seed is deposited at the desired height.
